Product Code: R200
Category: GENERAL,AGGREGATE
Sub-Category: PHYSICAL PROPERTIES

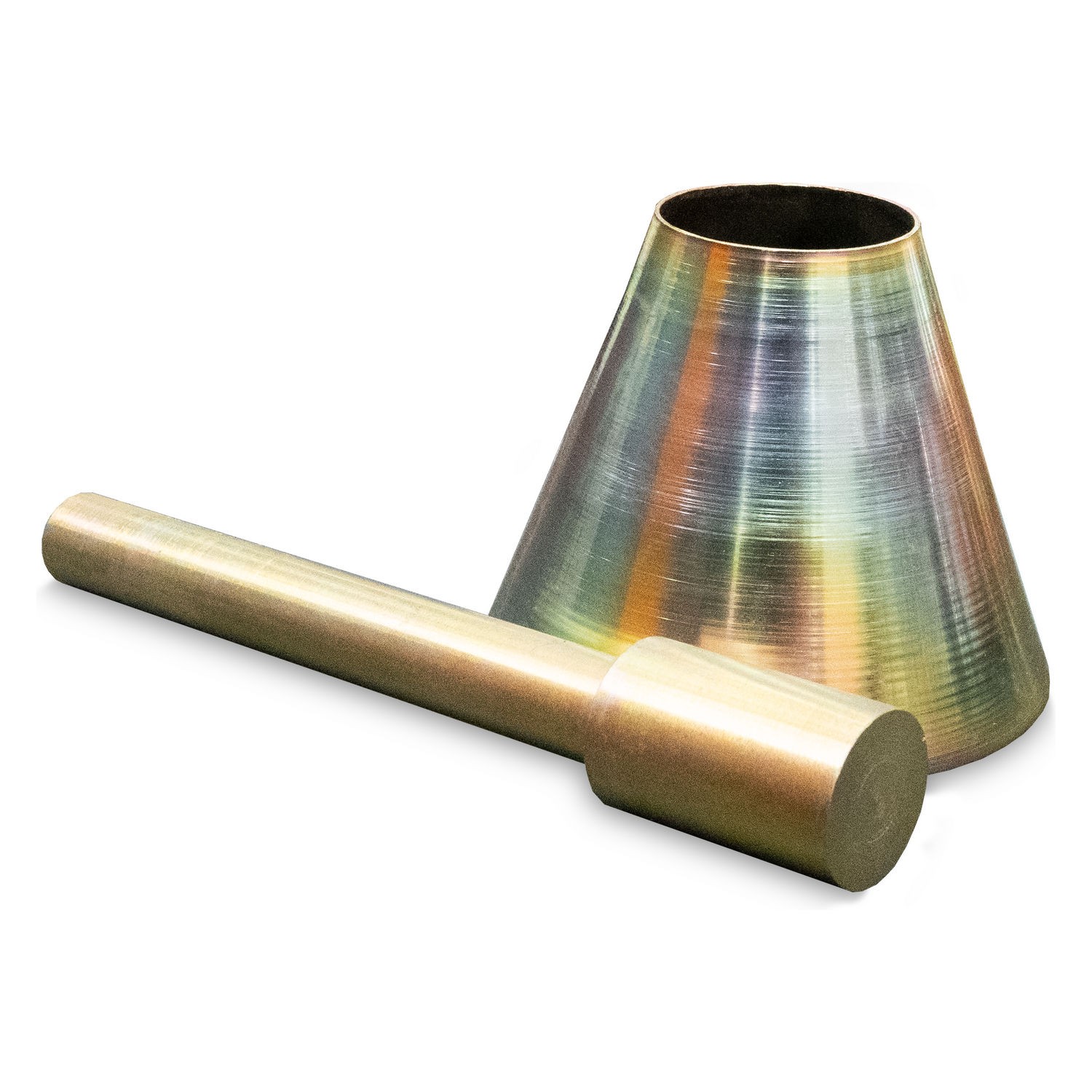

- Designed to determine the specific gravity and water absorption of fine aggregates, crucial for evaluating material suitability in construction projects.
- The set includes a metal mold shaped as a frustum of a cone, facilitating standardized sample preparation for consistent and repeatable testing outcomes.
- Accompanied by a metal tamper, specifically weighted and dimensioned to ensure uniform compaction of aggregate samples during testing procedures.
- Manufactured from corrosion-resistant materials, enhancing durability and longevity in laboratory environments.
- Complies with ASTM and EN standards, ensuring compatibility with internationally recognized testing methodologies.
STANDARDS
ASTM C128 • EN 1097-6 • BS 812-2
TECHNICAL SPECIFICATIONS
- Cone (Mold) Dimensions:
- Top Inside Diameter: 40 ± 3 mm
- Bottom Inside Diameter: 90 ± 3 mm
- Height: 75 ± 3 mm
- Tamper:
- Mass: 340 ± 15 g
- Tamping Face Diameter: 25 ± 3 mm
ORDERING INFORMATION
| Item | Code |
| SAND ABSORBTION CONE – ASTM & EN | R200P001H |
| SAND ABSORBTION TAMPER – ASTM & EN | R200P002H |
| SAND ABSORBTION CONE – AS | R200P003H |
| SAND ABSORBTION TAMPER – AS | R200P004H |
| SAND ABSORBTION CONE and TAMPER – AS | R200X00SH |
| SAND ABSORBTION CONE and TAMPER – ASTM & EN | R200X00XH |
Keywords: Sand Absorption Cone, Fine Aggregate Testing, Specific Gravity Determination, Water Absorption Test, ASTM C128, EN 1097-6, BS 812-2, Aggregate Compaction Tool, Laboratory Testing Equipment, Construction Material Assessment
