PLUNGER PENETRATION APPARATUS (C094)

Category: Cement

Product Code: C094

Category: CEMENT

Sub-Category: WORKABILITY & CONSISTENCY



  • The Plunger Penetration Apparatus is designed to determine the consistency of fresh mortar, lime, and masonry cement by measuring the depth of penetration of a standardized plunger into the material.
  • This method provides a reliable assessment of workability, ensuring that the material meets the required consistency for application in construction projects.

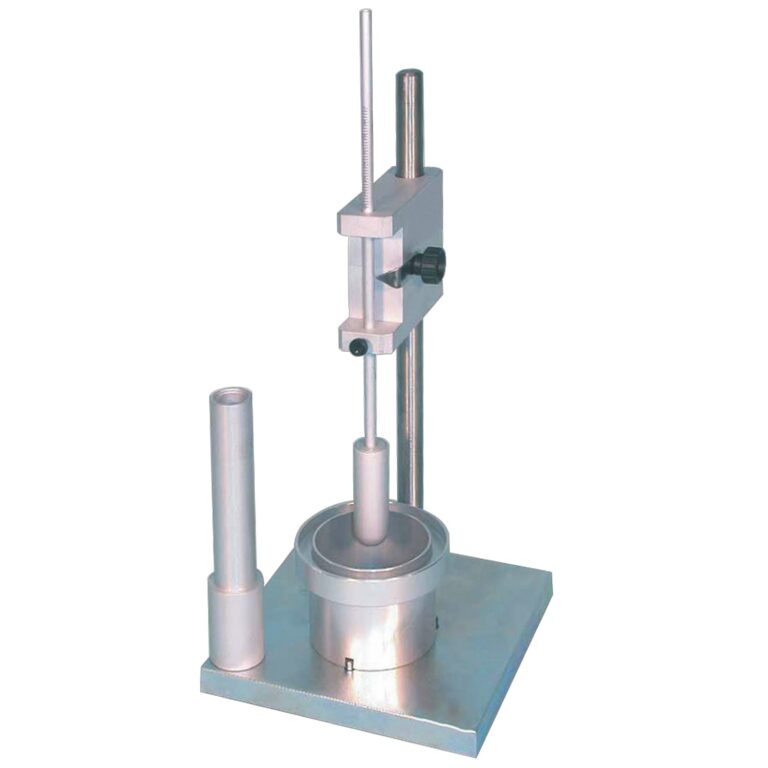

  • The apparatus consists of a sturdy steel base with a recess to accommodate the test cup and a vertical column supporting the plunger assembly, ensuring precise alignment during testing.
  • The plunger assembly, weighing 90 g, is designed to drop from a height of 100 mm, providing consistent and repeatable penetration measurements.
  • A tamper with specified dimensions is included to prepare the mortar sample uniformly within the test cup, enhancing the accuracy of the test results.

STANDARDS

EN 413-2 • EN 459-2 • EN 1015-4

SET

  • Plunger Weight: 90 g
  • Drop Height: 100 mm
  • Test Cup Dimensions: Ø80 mm × 70 mm
  • Tamper Dimensions: Ø40 mm × 200 mm, 0.250 kg
  • Frame Material: Steel

SUPPLIED WITH

  • Steel base and frame
  • Test cup (Ø80 mm × 70 mm)
  • Plunger assembly (90 g, dropping from 100 mm)
  • Tamper (Ø40 mm × 200 mm, 0.250 kg)

ORDERING INFORMATION

Item Code
PLUNGER PENETRATION APPARATUS C094X00EH
