LE CHATELIER SOUNDNESS TEST SET (C025)

Category: Cement

Product Code: C025

Category: CEMENT

Sub-Category: SPECIMEN PREPARATION



  • The Le Chatelier Soundness Test Set is designed to assess the soundness of cement by measuring its potential expansion when subjected to boiling water, ensuring the material's volume stability.
  • This apparatus is essential for detecting unsoundness in cement caused by excessive free lime or magnesia, which can lead to delayed expansion and structural issues.
  • Constructed from spring-tempered brass, the mould comprises a split cylinder with an internal diameter and height of 30 mm, equipped with two indicator stems extending 165 mm from the centerline, facilitating precise measurement of expansion.
  • The set includes all necessary accessories for conducting the test, such as glass plates, weights, a tamping rod, and a steel ruler, ensuring compliance with international testing standards.
  • The components are housed in a durable carrying case, providing protection and ease of transport for field and laboratory use.

STANDARDS

EN 196-3 • EN 459-2 • EN ISO 9597 • BS 6463

TECHNICAL SPECIFICATIONS

  • Mould Internal Diameter: 30 mm
  • Mould Height: 30 mm
  • Indicator Stem Length: 165 mm
  • Material: Spring-tempered brass
  • Weight: Approximately 30 g per mould

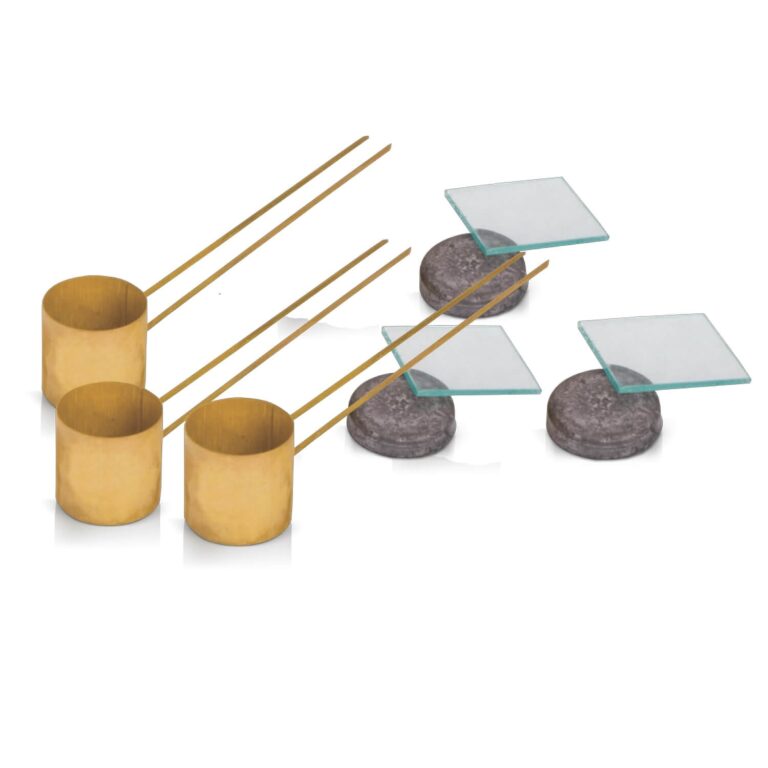

SET

  • Le Chatelier moulds (3 pcs)
  • Glass plates – 50 x 50 mm (6 pcs)
  • Weights – 100 g (3 pcs)
  • Tamping rod – Ø17 mm x 70 g (1 pc)
  • Steel ruler (1 pc)
  • Plastic carrying case

ORDERING INFORMATION

Item Code
LE CHATELIER MOULD C023X00EH
LE CHATELIER SOUNDNESS TEST SET C025X00EH
LE CHATELIER BATH – 6 lt G040X06XU
LE CHATELIER FLASK – 250 ml W019G250H
LE CHATELIER STAND for [G 040 X06X U] G040P001H
SPARE HEATER for LE CHATELIER BATH G040P004H
